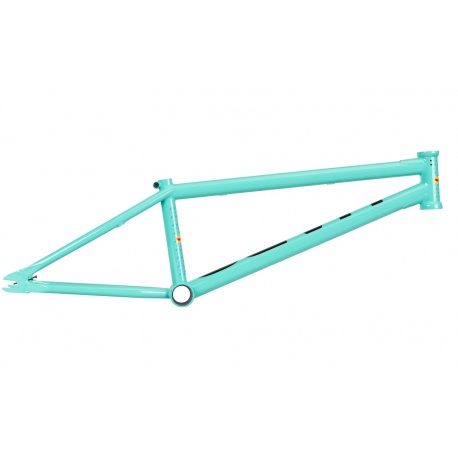

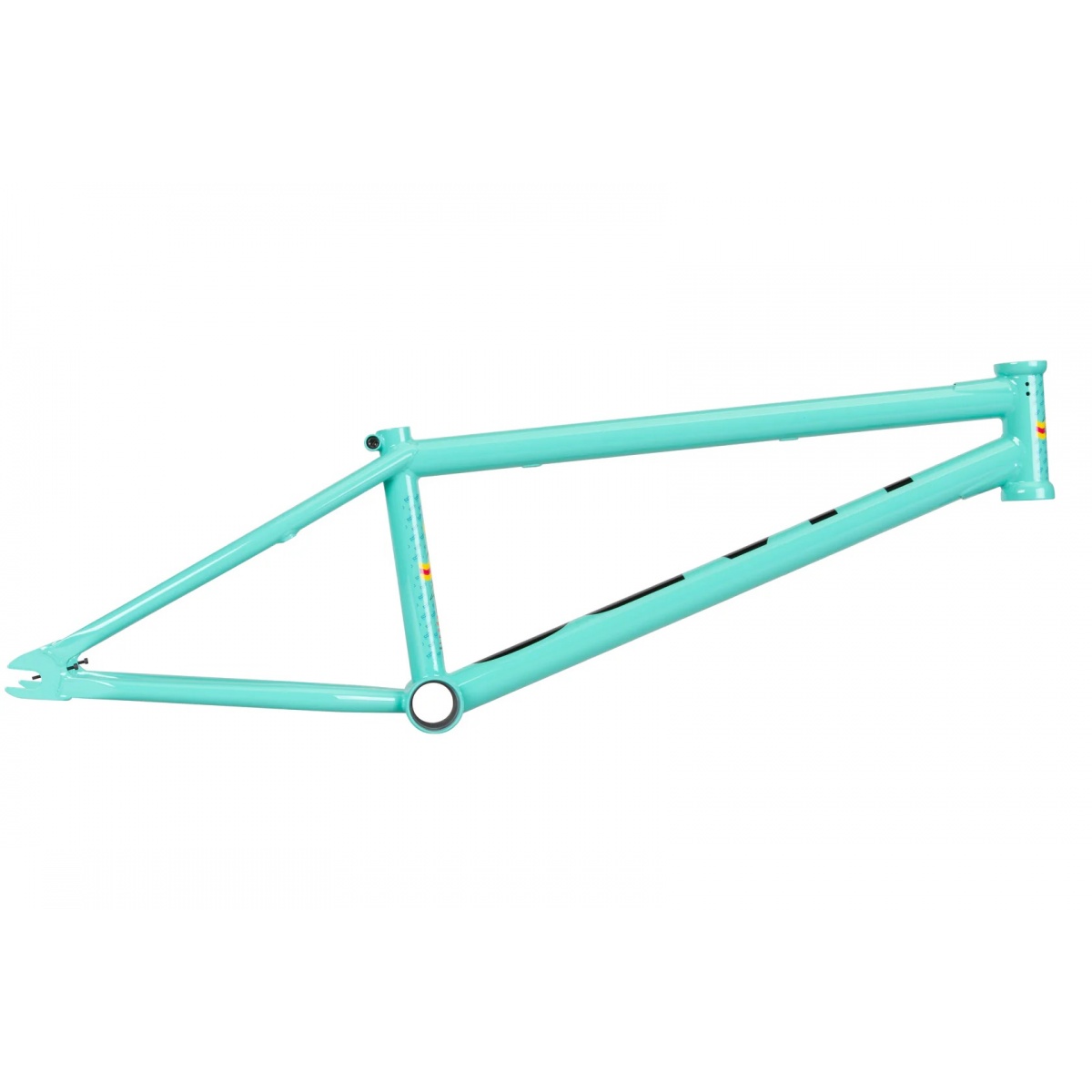

BASTILLE FRAME V2 19,5

Highlights

!

• Full chromoly frame with integrated head tube
• Double butted top and down tube
• Conified and tapered seatstays and chainstays
• Heat treated head tube, bottom bracket shell and dropouts
• 5mm CNC machined dropouts with internal adjusters
• Welded integrated seat post clamp
• Fully removable brake mounts and cable guides
• 75.5 degree head tube angle, 13" RC, 11.5" bottom bracket height.
• Sizes:
  • 19.5", 20.25" or 21"
• Standover heights:
  • 19.5" TT / 20.82 cm
  • 20.25" TT / 20.95 cm
  • 21" TT / 21,59 cm
• Weight: approx. 2,1 KG
