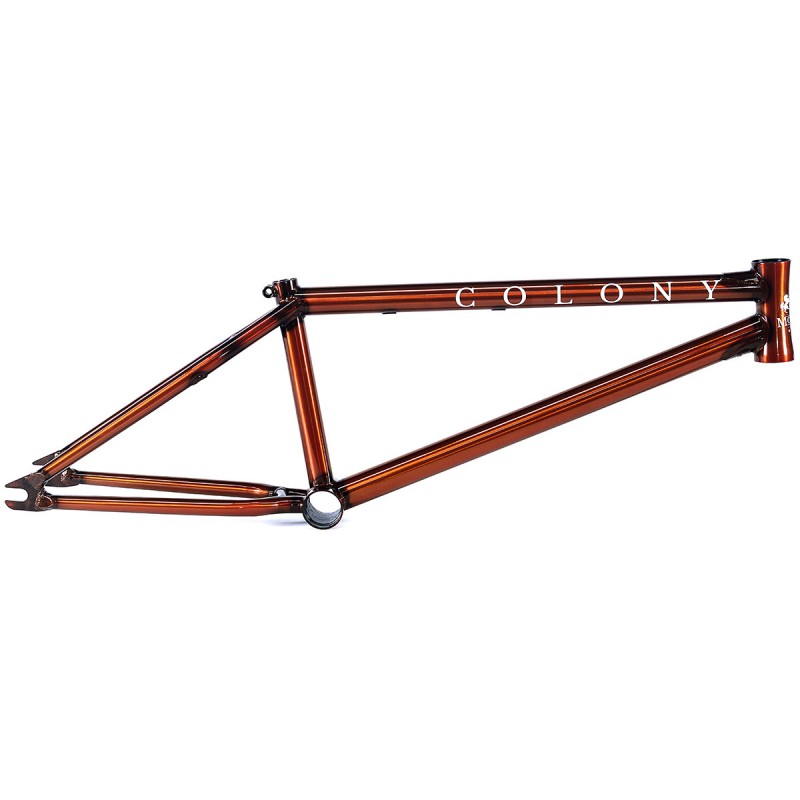

COLONY MONASH 20.8 TRANS ORANGE FRAME

03-022B

New product

  • Team Designed Frame
  • Responsive Street Geometry
  • Dent Resistant DT & TT with External Gussets
  • Wider rear end for fatter 2.4″ tyres.
  • Full 4130 CrMo frame.

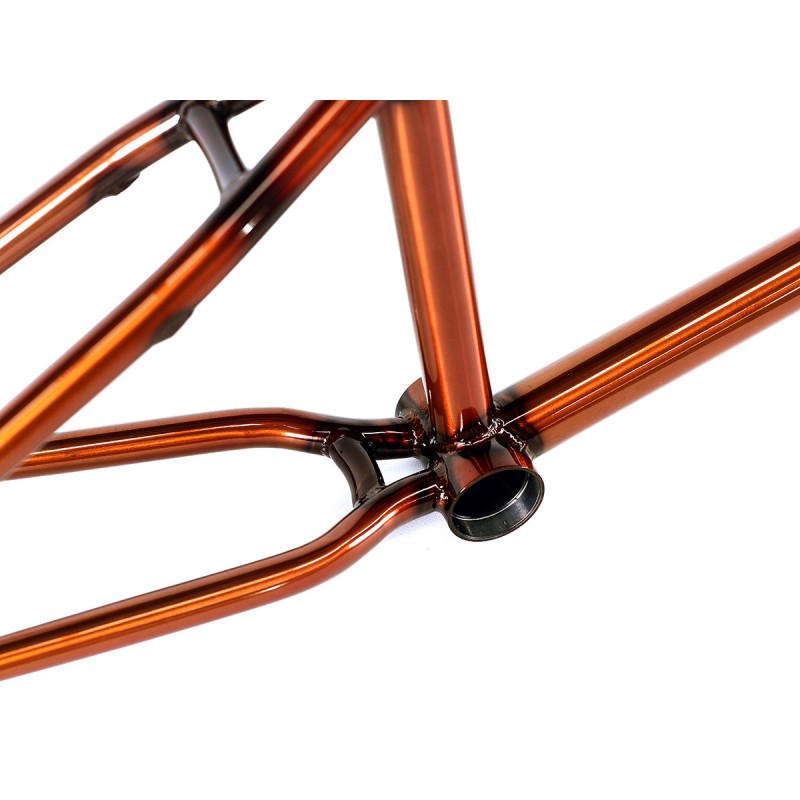

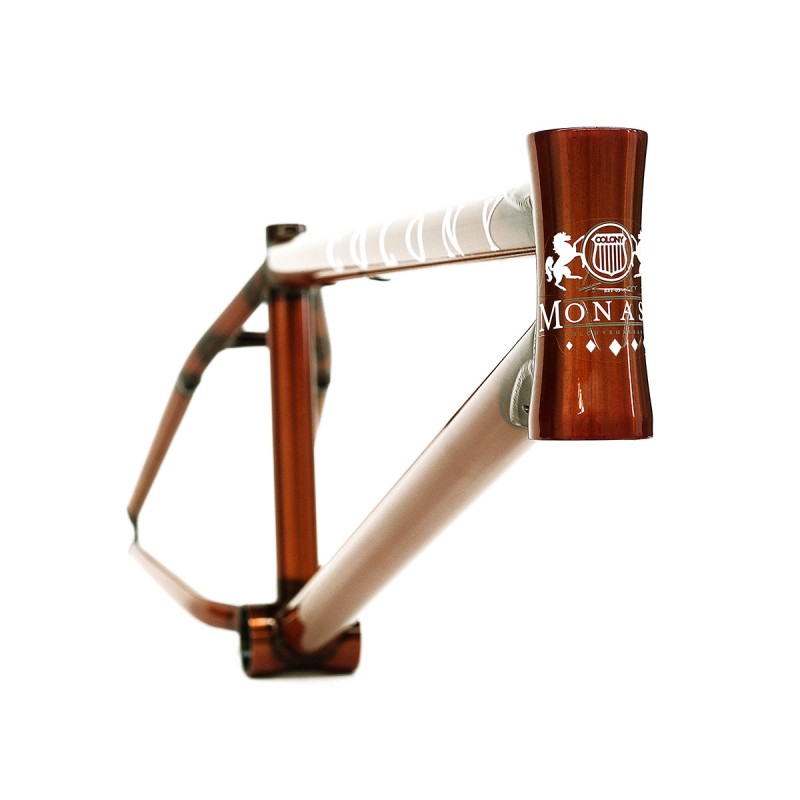

  • Heat treated integrated head tube, MID BB and 5mm thick CNC machined dropouts with 14mm slots.

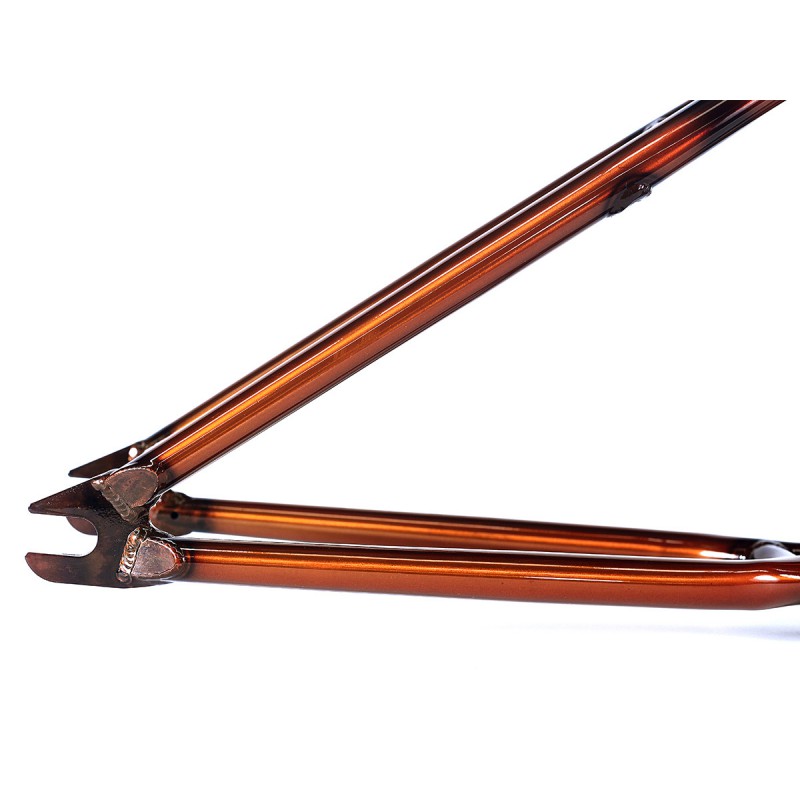

  • Tapered rear stays.

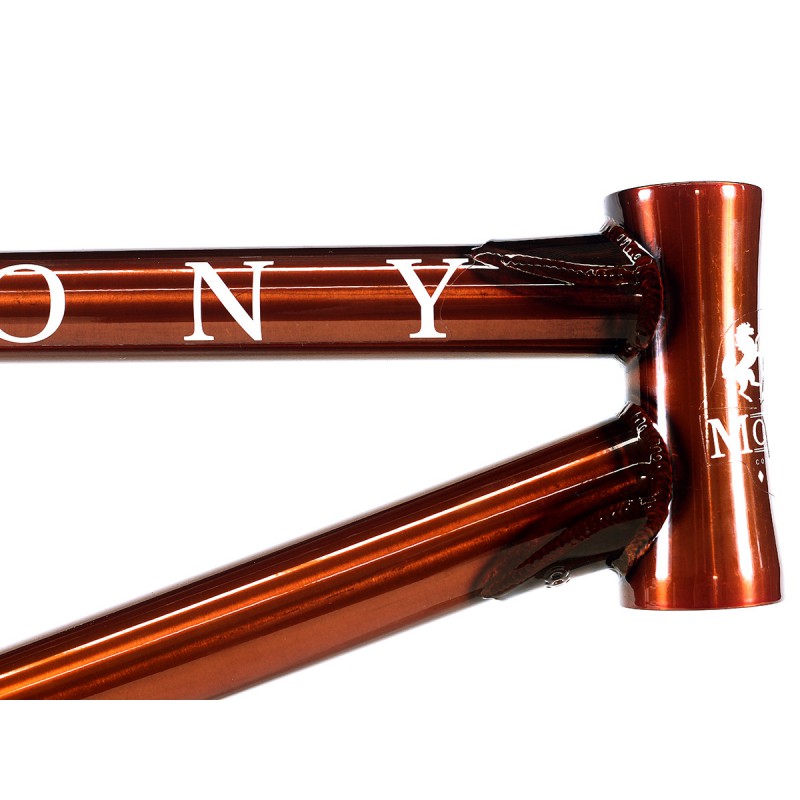

  • External Gussets on TT & DT tubing
  • Wider rear end for fatter 2.4″ tyres.

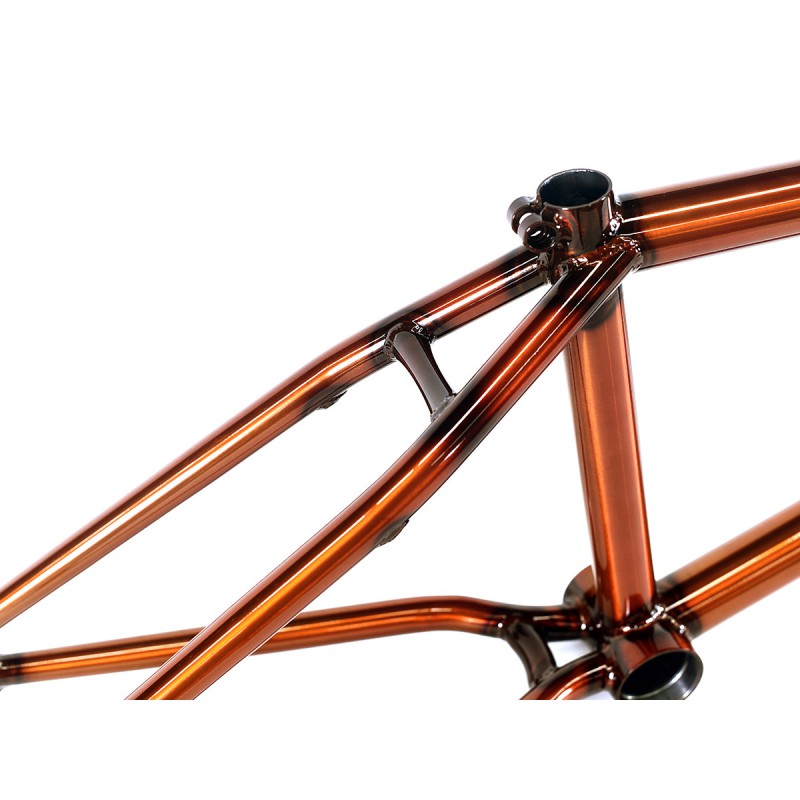

  • Built-in seat clamp with replaceable nut & bolt.
  • Removable brake mounts (No Gyro Tab Holes) & hardware.
  • Unique & exclusive invest cast removable Colony brake tabs.
  • Sizes: 20.8″ and 21″ TT.
  • 13.1” rear slammed, 75.5º HA, 70º ST.
  • 11.5″ BB Height.
  • Stand over height 9.0″ (centre of BB shell to centre of TT)
  • Weight: 20.4″ version 5.22 lbs (2,370 grams).
  • Comes in Trans Black & Trans Orange.
  • Note: We do not recommend or warrant the use of lower dual cable systems on our frames. Use only two into one cable systems.

Availability:

LIMITED QUANTITY ! Delivered to you within 2 to 3 days



155,60 € tax incl.

-60%

Recommended retail price :
389,00 € tax incl.

Data sheet

Top Tube 19.8"
Chain Stay 13"
Head Angle 75.2°
Seat Angle 71°
Standover 7.5" (centre boitier - centre top tube)
BB height : 11.5"
Weight : 2.25 Kgs (taille 20.4)
